General fine dust applications, including mixing, bag filling, grinding, sandblasting, vibrating screens, and material crushing operations.
Powerful pulse-jet cleaning ensures high filtration velocity is maintained.

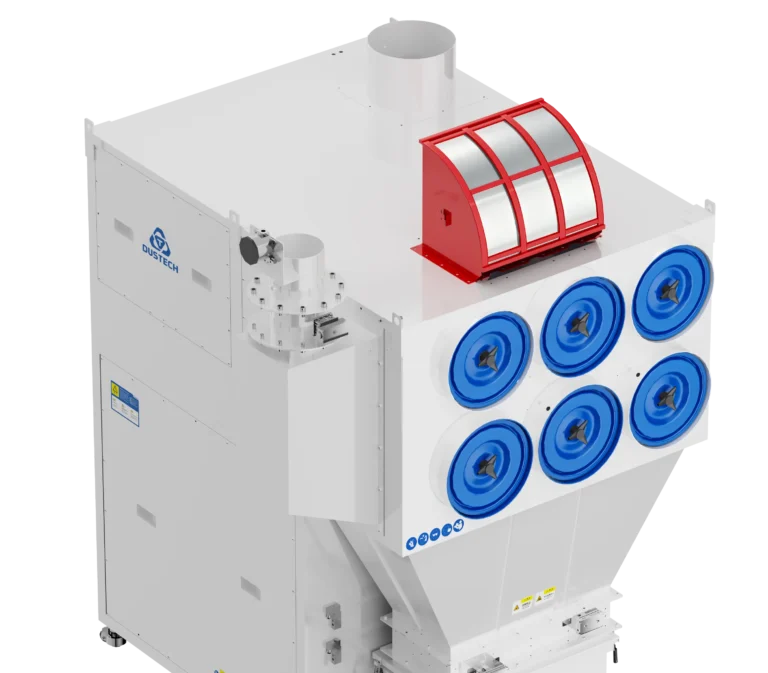

Equipped with PTFE-coated filter cartridges that intercept particles as small as 0.3 μm.
Vertical installation reduces footprint and prevents filter area loss from dust accumulation.

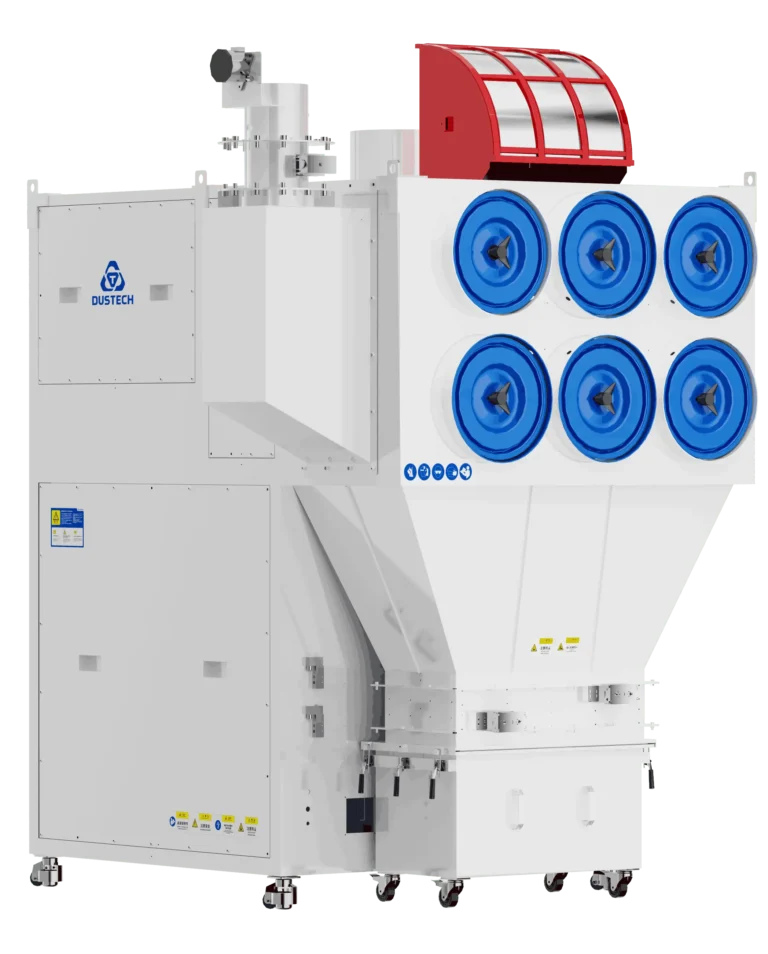

| DT-EX-5.5-MP | DT-EX-7.5-MP | DT-EX-11-MP | DT-EX-15-MP | DT-EX-22-MP | DT-EX-30-MP | |
|---|---|---|---|---|---|---|
| Voltage(V/Hz) | 380/50 | |||||
| Power(kW) | 5.5 | 7.5 | 11 | 15 | 22 | 30 |
| Max airflow(m³/h) | 3656 | 4116 | 4500 | 5400 | 6500 | 8000 |
| Filter efficiency | >99% | |||||
| Filter area(m²) | 44 | 44 | 44 | 44 | 88 | 176 |
| Filter cleaning method | Pulse jet | |||||
| Dia.air inlet(mm) | ∅200 | ∅200 | ∅250 | ∅250 | ∅250 | ∅273 |
| Dimensions[L×W×H] (mm) | 2450*1260*2700 | 2450*1260*2700 | 2350*1400*2250 | 2450*1700*2300 | 2550*1700*2900 | 2550*1650*3680 |
