Designed for fine particulate extraction in precision manufacturing processes.
Typical applications include laser welding, PCB depaneling drilling and edge routing, ultrasonic welding fume extraction, and similar operations.

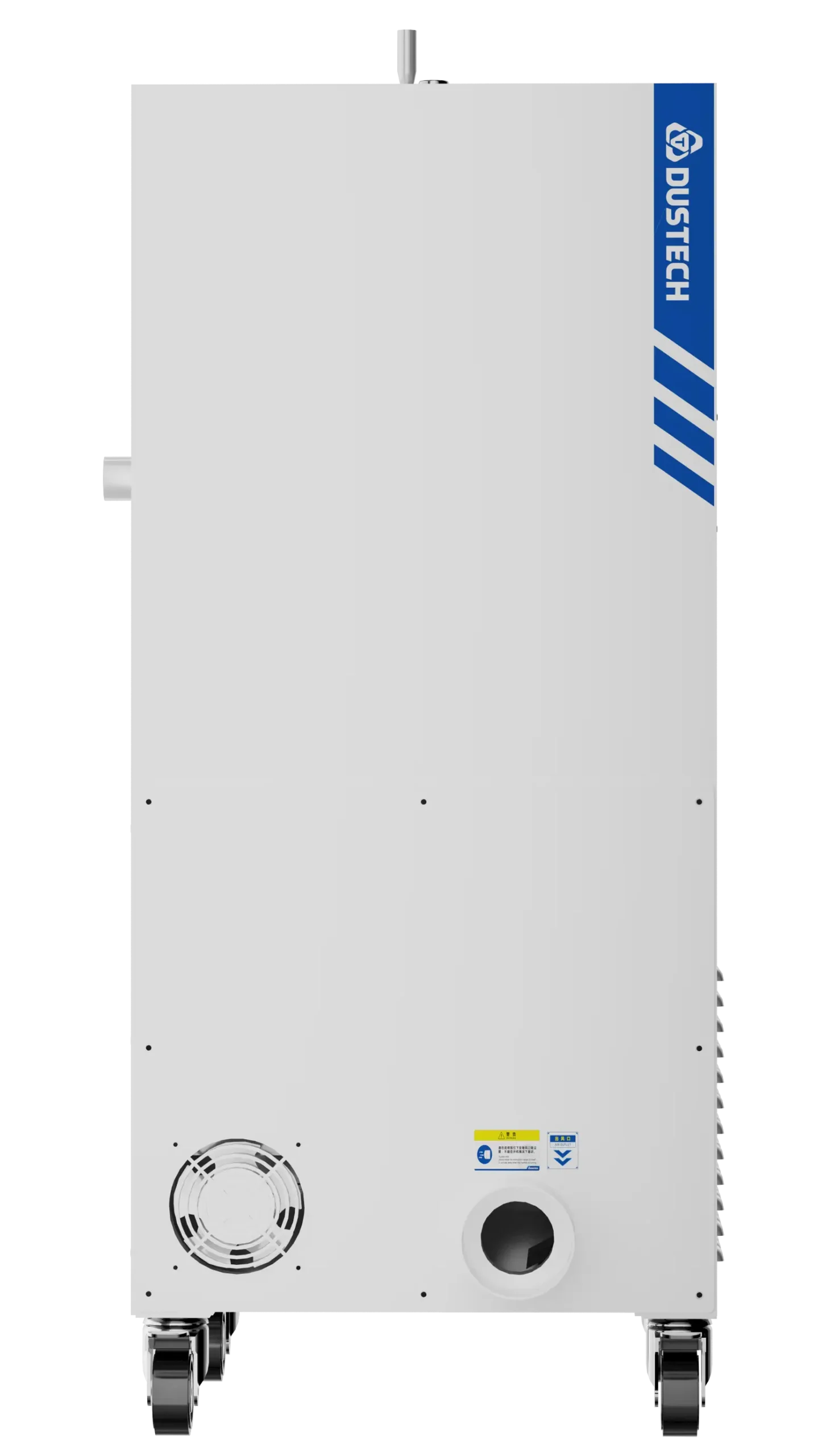

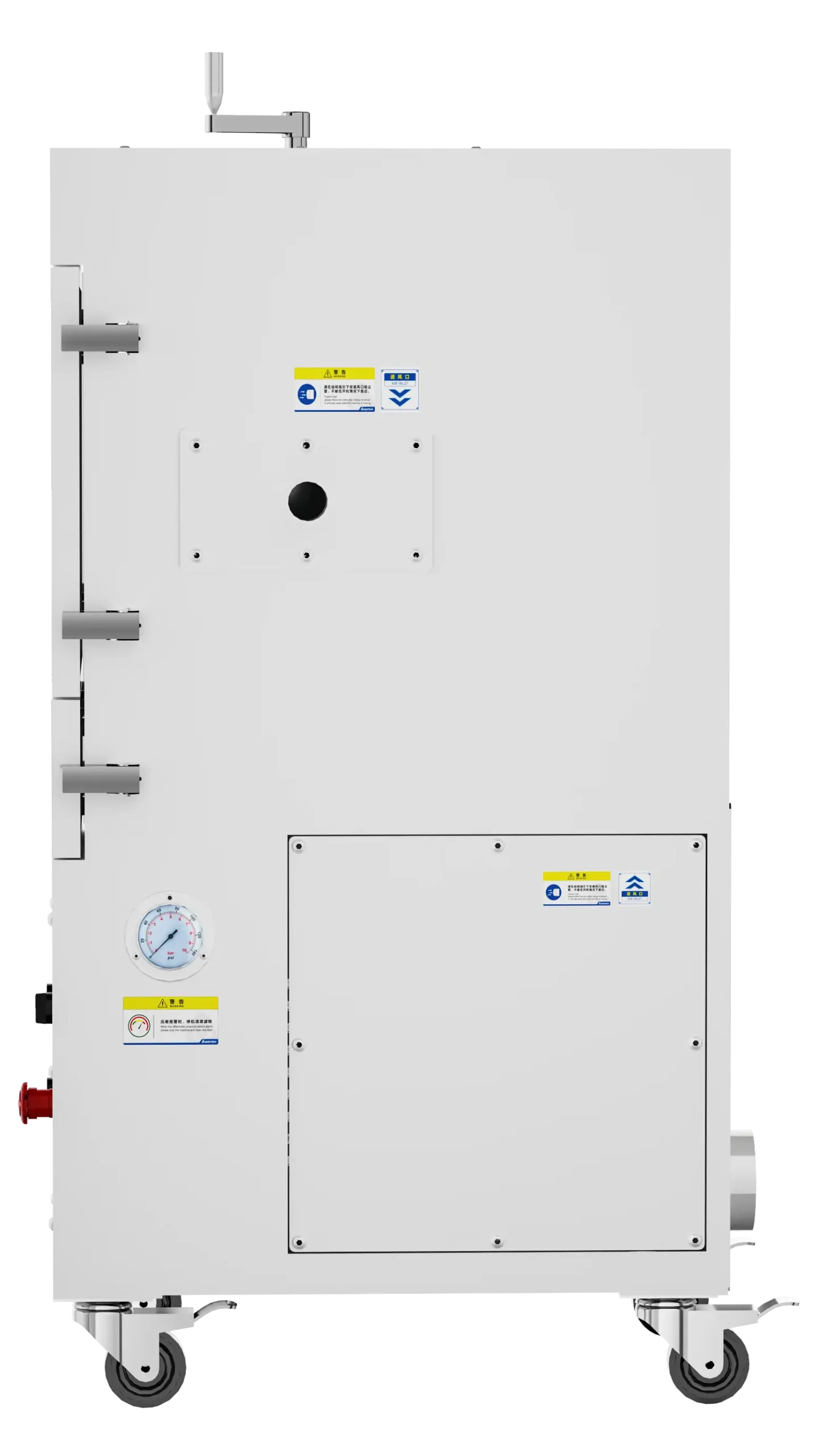

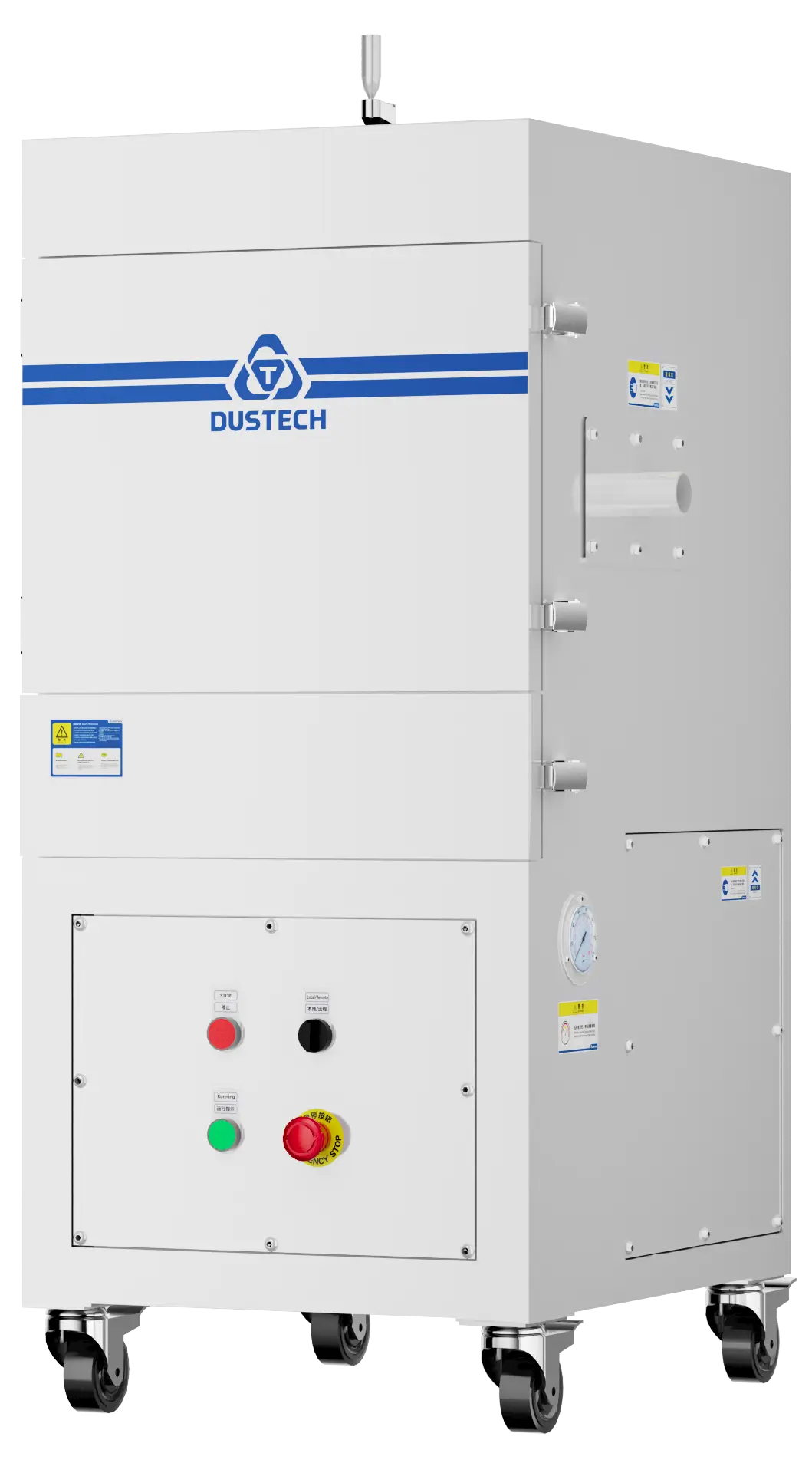

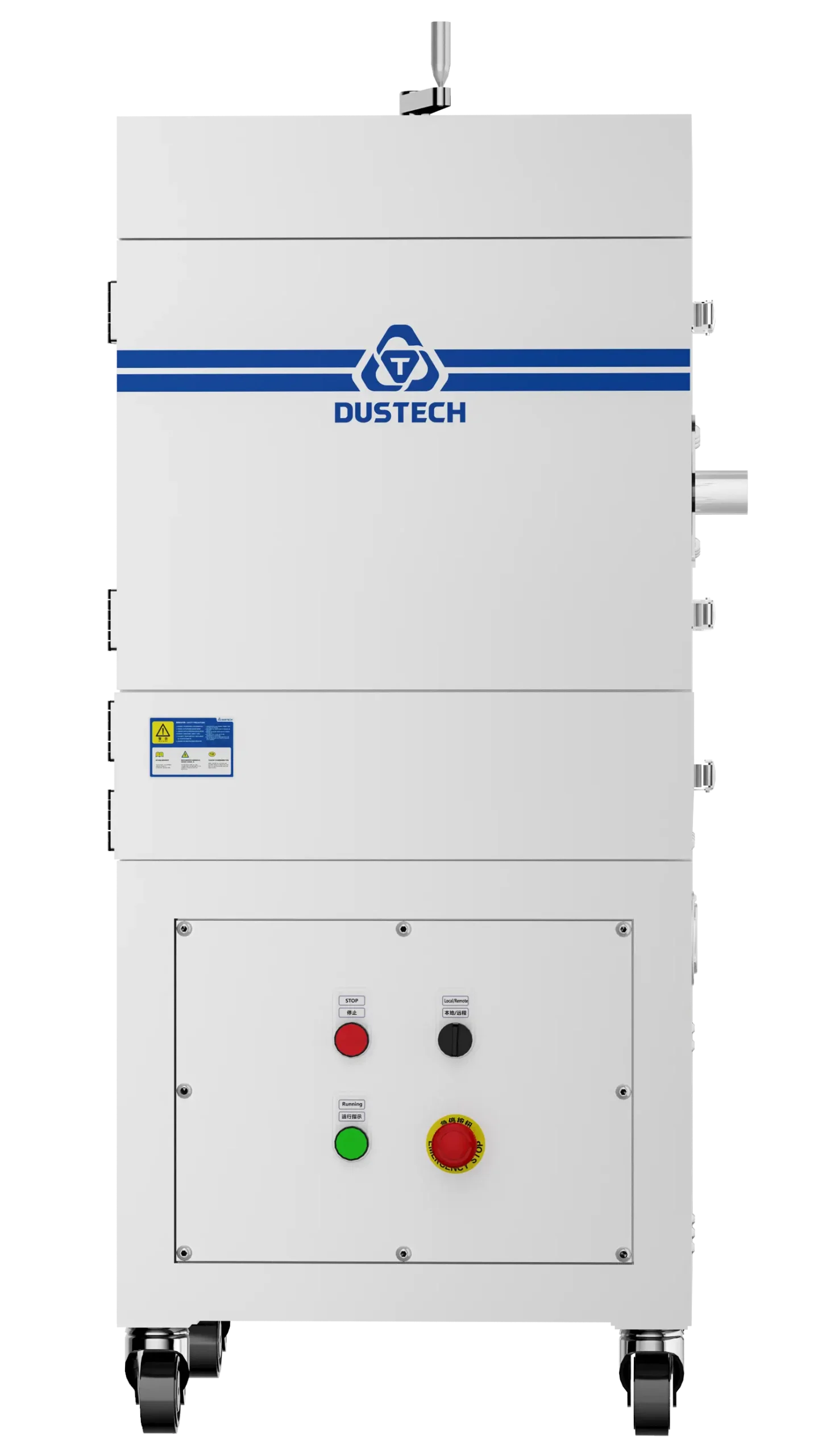

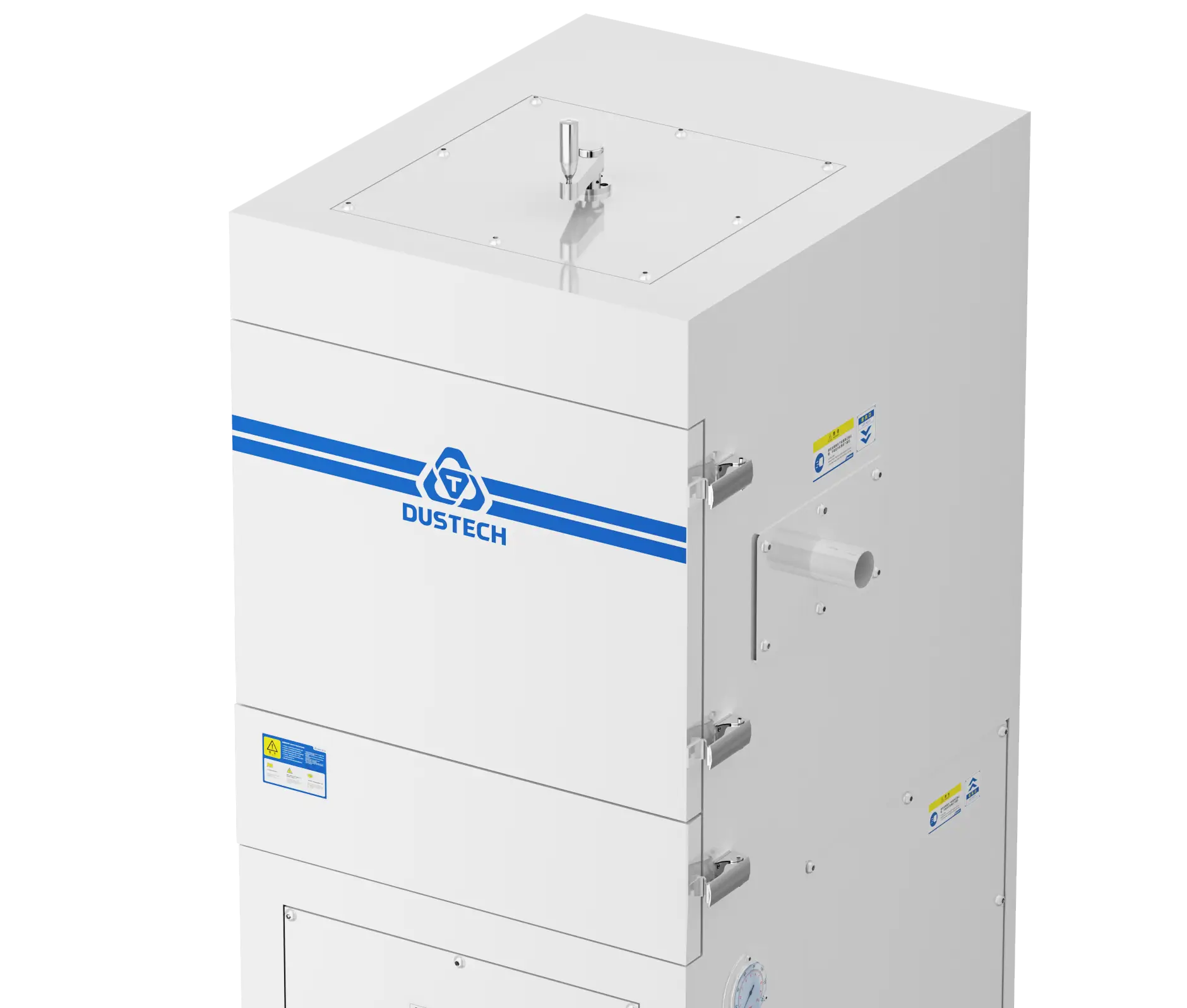

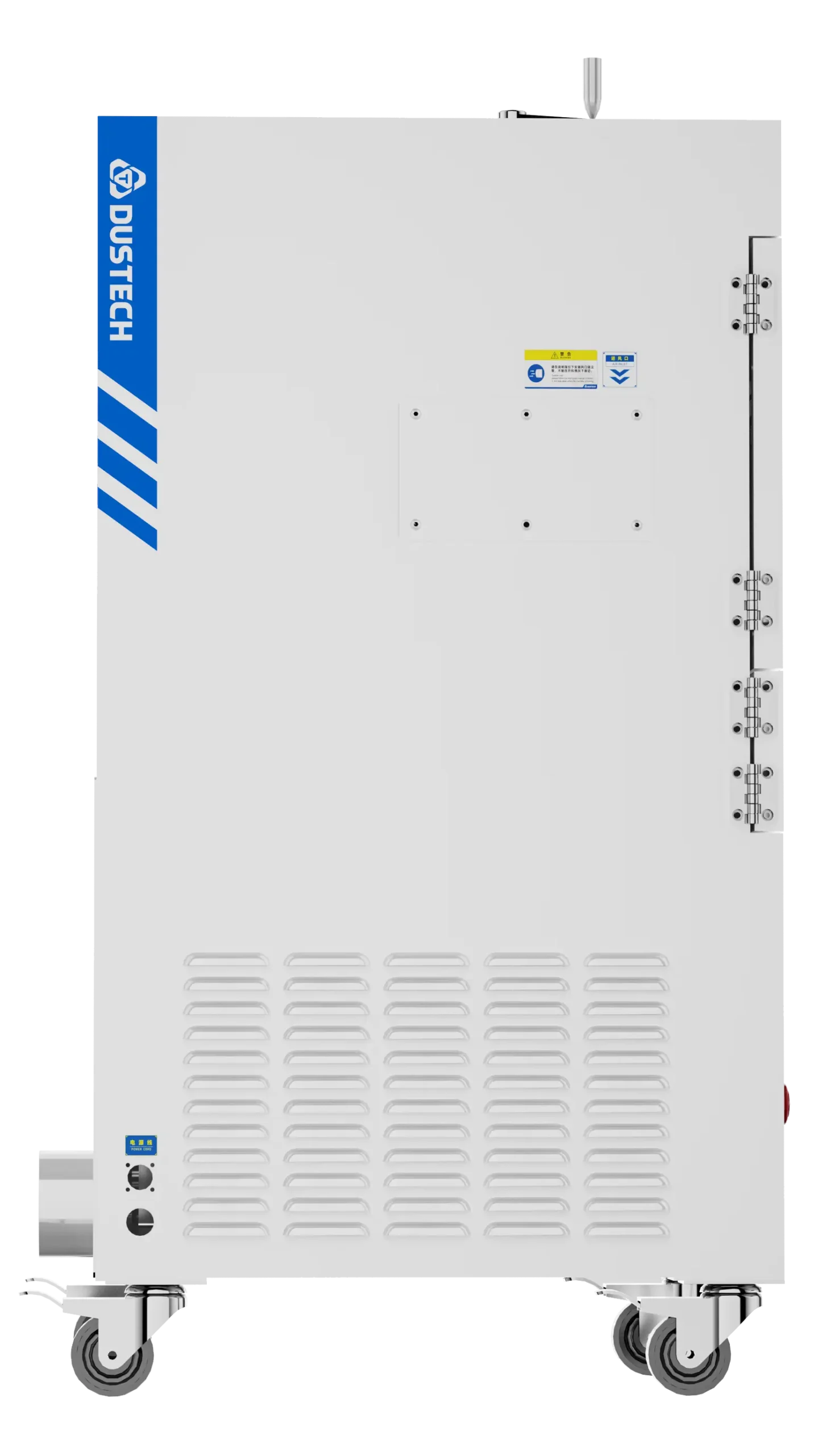

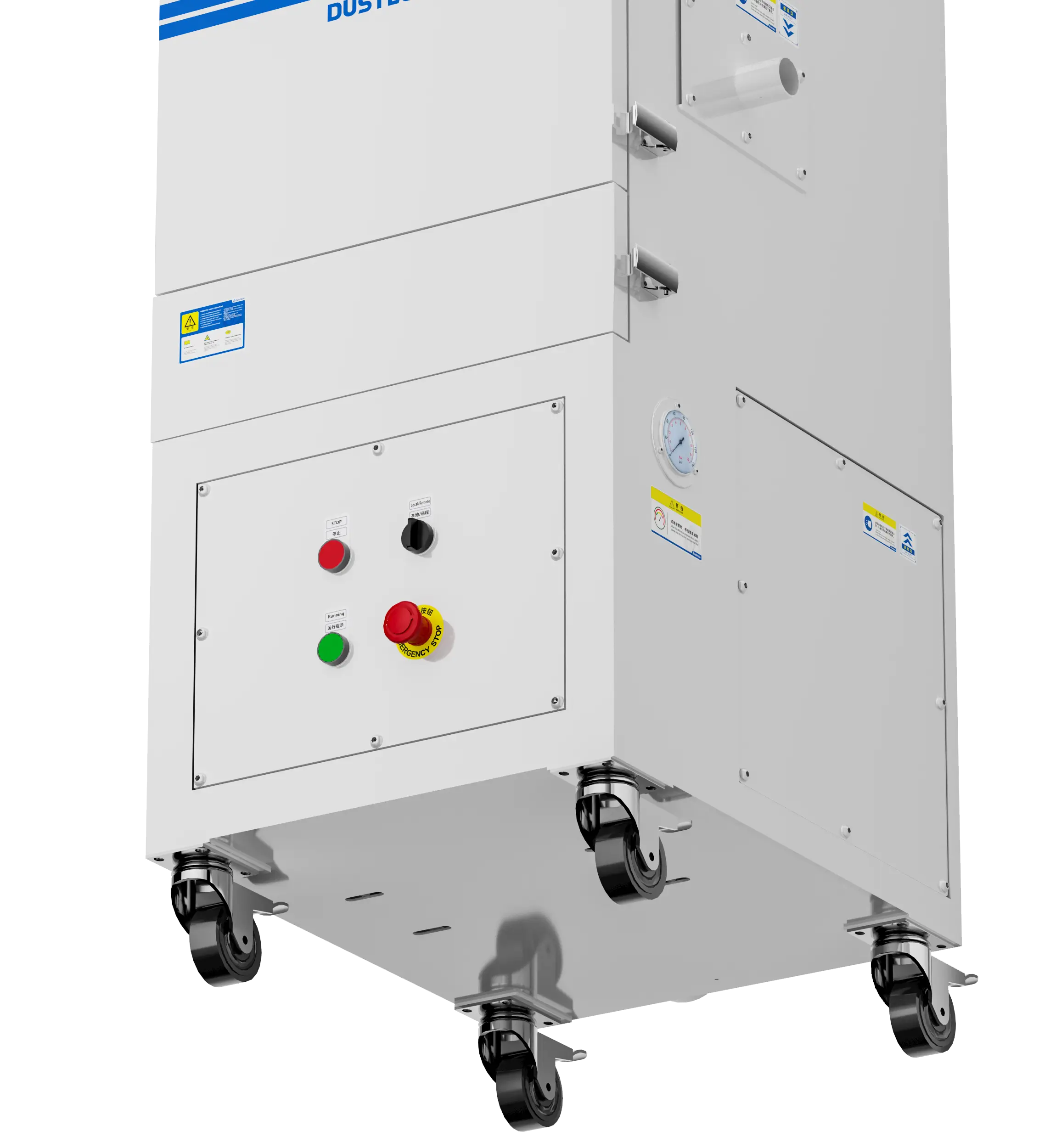

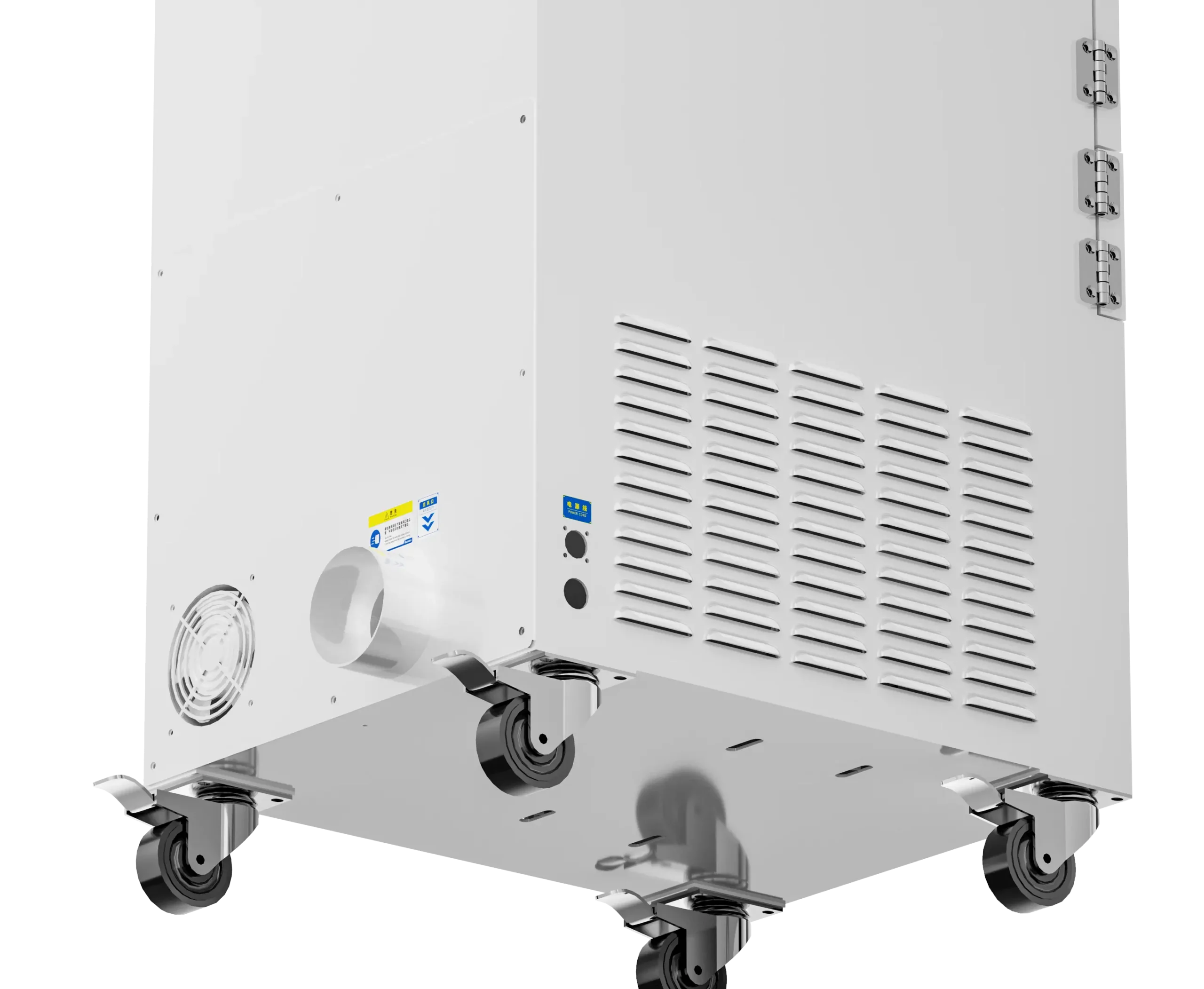

Cabinet-style enclosure with a clean, compact design, providing motor and electrical protection, high filtration, and low noise.
Thread-twist filter cartridge with membrane-coated media for enhanced filtration performance.
Multi-cartridge configuration extends service life and ensures stable long-term operation.
Safety-compliant electrical control system supports convenient remote operation.
| DV-X-150 | DV-X-220 | DV-X-300 | DV-X-400 | DV-X-550 | |
|---|---|---|---|---|---|
| Voltage(V/Hz) | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 |
| Power(kW) | 1.5 | 2.2 | 3 | 4 | 5.5 |
| Max air pressure(mmH₂O) | 2000 | 2350 | 2700 | 2900 | 3000 |
| Max air flow(m³/h) | 210 | 265 | 318 | 318 | 530 |
| Noise dB(A) | 70±2 | 72±2 | 74±2 | 76±2 | 78±2 |
| Air inlet Dia. (mm) | 1*Ø50 (Standard Configuration） | ||||
| Filter area(m²) | 1.8 | 2.2 | 4.8 | ||
| Dust container capacity (L) | 22 | 26 | 30 | ||
| Dimensions[L×W×H](mm) | 530*540*1040 | 600*750*1250 | / | ||
